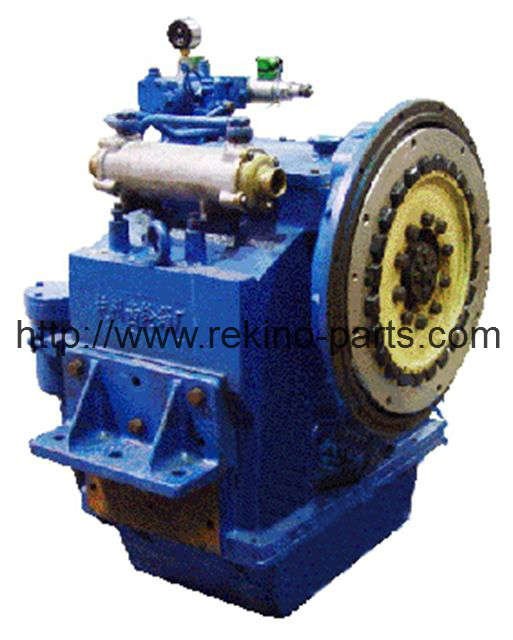

ADVANCE MB270A
Nominal Ratio | Real Ratio | kw/rpm(HP/rpm) Gearing Power |
4:01 | 4.048:1 | 0.147 (0.200) |
4.5:1 | 4.526:1 | 0.147 (0.200) |
5:01 | 5.118:1 | 0.147 (0.200) |
5.5:1 | 5.5:1 | 0.1338(0.182) |
6:01 | 5.947:1 | 0.1103(0.150) |
6.5:1 | 6.389:1 | 0.882(0.120) |
7:01 | 6.824:1 | 0.882(0.120) |
Options/Comments: PTO device available;Mechanical remote operation | ||
Centre distance: 270mm | ||
Engine: NTA-855-M400;CAT 3406TA.. | ||
L*W*H: 594*810*868mm | Net Weight: 675Kg | |
Bell housing:SAE0,1 | Flange:SAE 18,16,14 | |
MAX.500HP at 2500RPM | Engine Speed:1000~2500RPM |
Nominal Ratio | Real Ratio | kw/rpm(HP/rpm) Gearing Power |
4:01 | 4.048:1 | 0.147 (0.200) |
4.5:1 | 4.526:1 | 0.147 (0.200) |
5:01 | 5.118:1 | 0.147 (0.200) |
5.5:1 | 5.5:1 | 0.1338(0.182) |
6:01 | 5.947:1 | 0.1103(0.150) |
6.5:1 | 6.389:1 | 0.882(0.120) |
7:01 | 6.824:1 | 0.882(0.120) |
Options/Comments: PTO device available;Mechanical remote operation | ||
Centre distance: 270mm | ||
Engine: NTA-855-M400;CAT 3406TA.. | ||
L*W*H: 594*810*868mm | Net Weight: 675Kg | |
Bell housing:SAE0,1 | Flange:SAE 18,16,14 | |
MAX.500HP at 2500RPM | Engine Speed:1000~2500RPM |
